Solar powered hay feeders with adjustable timer.

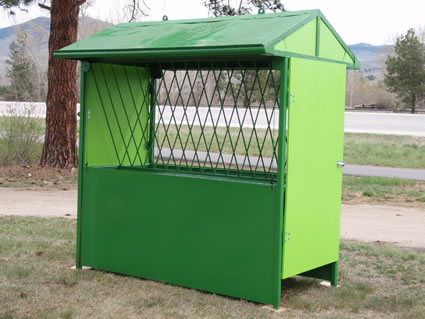

The 4 horse automatic hay feeder with side doors
open at the pre-set feeding time.
Shown with the side doors closed after the programmed feeding time.
Digital timer allows multiple programming for
feeding times and durations. Feed hay to your horses up to 5 times a
day. Just set it and forget it.
Solar battery-powered low voltage eliminates
danger of electric shock to horses and people, and insures hands free
feeding of your stock on time even when your neighborhood suffers a
electric power outage.
The 4 horse automated feeder shown with the end
door opened for loading hay clips in.
Equine feeder with the end door open. This is where
the hay bale clips are loaded in by hand.
The automatic hay feeders have a full length door
at one end, which allows access to the lifting winch for raising the
doors, the timer, and the solar panel control switch. The other end
door has a solid panel on the bottom and a half door on the top for
filling the hay rack. This half door makes it nice to place the horse
feeder against a fence and then be able to open the door from outside
the fence and fill the hay hopper.
This automatic hay feeding system has many
advantages for both the owner and the horses.
The horses will not get nervous and pace
around looking for you at feeding time. They stand there relaxed
knowing the doors will go down for feeding when it's time. Watch hay feeding videos
The horses always get the right amount of
feed at the feeding time you want them to have. Works good with hot
alfalfa. Eliminates over eating problems.
The metal roof keeps food covered and dry
even in the worst of storms. This covered feeder greatly reduces the
chances of getting moldy hay that can make your livestock sick.
Horses get fed hay as many times a day as
you want without danger of being over fed. This is ideal for the owner
that doesn't want to hurry to feed in the morning or hurry home to be
on time. Great for cold snowy mornings, watch out the window as the
horses are automatically fed.
Horses are ready for you when you want to
ride, you don't have to be there to feed them. Your not tied down to a
strict schedule. Just fill the hay rack and forget it for a couple of
days. This method can cut down on the waste by up to 35% . If the
horses have a lot of time they will just pull out all the hay looking
for the best stuff. Set the doors to close after 1 hour and the horses
will clean up the spilled hay, instead of trampling and wasting it.
Minimizing wasted hay makes this automated unit pay for itself quickly.
All of these automatic feeders have a
safety switch which can eliminate any chances of injury due to getting
caught in a closing door. The safety switch is fully adjustable and
stops the unit when any resistance greater than the weight of the door
is encountered. This is similar to safety switches used on automatic
Click to view
videos of hay feeders in action
wall mount feeder in a hay shed
Installing a fence
mount feeder in a pasture
How to cut round bales
Steel Frame Run in
